Place of Origin:
ANHUI CHINA
Brand Name:
YUSHUN
Model Number:
YS
Contact Us

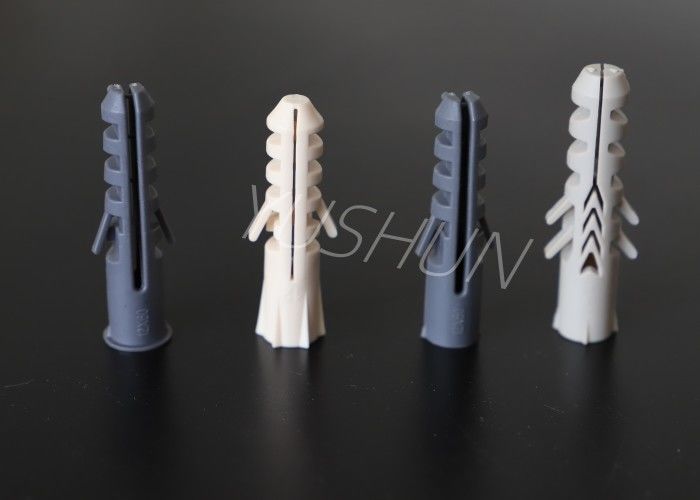

Name:Plastic wall plug/Wall plug
Materials:Generally, PE, PA and PP are used as raw materials.
Plastic fastener type wall plug, used for fastening the connection of objects, supporting the use of self-tapping screws.

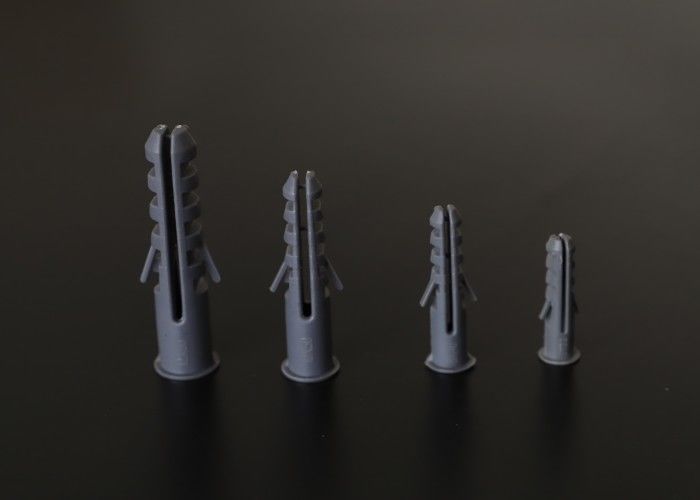

As for the size selection: Diameter M5, M6, M7, M8, M10, M12, M14, length from 20mm to 160mm or even more than 200mm. Commonly used dimensions are M6*30mm, M8*40mm,M10*50mm, M12*60mm,M14*75mm.We also support custom sizes.

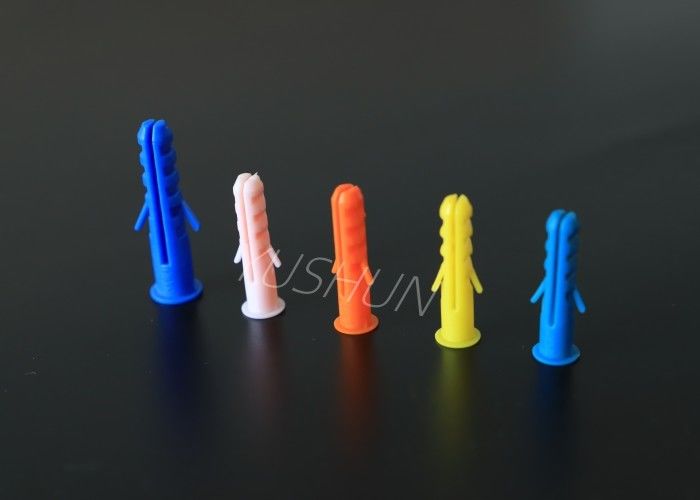

As for the color selection: The most commonly used and popular color is gray. In addition, we have many colors for you to choose from, such as white, red, yellow, blue, etc. We also support custom colors.
ITEM.NO | Length/mm | Out Dia/mm | Material | Packing |
YS-05 | 25 | 5 | PE,PP | 100PCS/BAG |
YS-06 | 30 | 6 | PE,PP | |
YS-07 | 35 | 7 | PE,PP | |
YS-08 | 40 | 8 | PE,PP | |
YS-10 | 50 | 10 | PE,PP | |
YS-12 | 60 | 12 | PE,PP | |
YS-14 | 75 | 14 | PE,PP |
Details Images
PE New Material.
Preferred materials, high bearing capacity, strong and durable, strong corrosion resistance, safe and stable
Asymmetric Modeling.
The expansion area is divided into two symmetrical parts to avoid damage to the installation foundation and cause anchoring failure
Expansion Curve.
The expansion curve design of flange inverted hook type greatly increases the anchoring force of anchor bolt

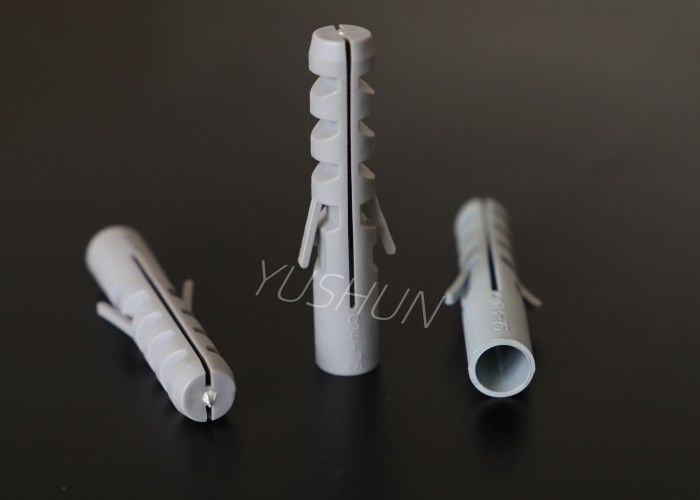

Leaf Wing On Casing.
The blade fins on the casing prevent the expansion tube from rotating and increase friction during installation
Full Expansion.
The thick wall of the high elastic tube makes the expansion tube more fully expanded
Using Occasions
Use of plastic wall plug.
Use of plastic wall plug,after use, it does not harm the wall, and the force is good. It can exert the maximum fastening force for a long time on the special environmental requirements such as insulation and humidity. The toughness is good, it is not easy to break, and the bearing force is strong
Widely used, practical and helpful
Used for fixing curtains/paintings/cabinets/kick-boards/partitions/flower baskets/TV sets, etc.
Our Advantages
1.Suitable for fire resistant stainless steel insulation fixing.
2.Made out of stainless steel material for corrosion resistance.
3.Fast and simple hammer-set installation reduces working times.
4.Extensive dimensional range allows anchorage of insulation boards up to 250 mm thick.
5.A simple hammer-set installation which reduces working times.
