The nylon cable tie for tying things is designed to have the function of stopping back (except for the buckle type), which can only be tied tighter and tighter. There are also detachable tie straps (buckle type).
As for the size selection: The most commonly used size is
2.5*100mm,2.5*150mm,2.5*200mm,3.6*150mm,3.6*200mm,3.6*250mm,3.6*300mm,4.6*300mm,4.6*400mm,4.5*500mm, 7.5*300mm and so on. We also support custom sizes.
Item | Length(L) | Width(W) | Bundle diameter (E)(mm) |
Tensile strength |
||
Inch | mm | mm | LBS | KGS | ||
2.5x100 | 4.0" | 100 | 2.5 | 2-22 | 18 | 8 |
2.5x101 | 4.7" | 120 | 2-30 | |||
2.5x102 | 6.0" | 150 | 2-35 | |||
2.5x103 | 8.0" | 200 | 3-50 | |||
2.5x104 | 6.0" | 150 | 3.6 | 3-35 | 40 | 18 |
2.5x105 | 8.0" | 200 | 3-50 | |||
2.5x106 | 10.0" | 250 | 3-65 | |||
2.5x107 | 12" | 300 | 3-80 | |||
2.5x108 | 6.3" | 370 | 3-105 | |||
2.5x109 | 8.0" | 150 | 4.8 | 3-40 | 50 | 22 |
2.5x110 | 10" | 200 | 3-50 | |||
2.5x111 | 12" | 250 | 3-65 | |||
2.5x112 | 14" | 300 | 3-80 | |||
2.5x113 | 14.6" | 350 | 3-90 | |||
2.5x114 | 16" | 370 | 3-98 | |||
2.5x115 | 16.9" | 400 | 3-105 | |||
2.5x116 | 17.7" | 430 | 3-120 | |||
2.5x117 | 17.7" | 450 | 3-130 | |||
2.5x118 | 19.7" | 500 | 3-150 | |||
2.5x119 | 8.0" | 200 | 7.2 | 3-50 | 120 | 55 |
2.5x120 | 10" | 250 | 4-65 | |||
2.5x121 | 12" | 300 | 4-80 | |||
2.5x122 | 14" | 350 | 4-90 | |||
2.5x123 | 16" | 400 | 4-105 | |||
2.5x124 | 18" | 450 | 4-110 | |||
2.5x125 | 20" | 500 | 4-150 | |||
2.5x126 | 21.6" | 550 | 4-165 | |||
2.5x127 | 16" | 400 | 8.8 | 8-105 | 175 | 80 |
2.5x128 | 18" | 450 | 8-118 | |||
2.5x129 | 20" | 500 | 8-150 | |||
2.5x130 | 21.6" | 550 | 8-160 | |||
2.5x131 | 23.6" | 600 | 8-170 | |||
2.5x132 | 25.6" | 650 | 8-185 | |||
2.5x133 | 28.3" | 720 | 10-195 | |||
2.5x134 | 31.5" | 800 | 10-230 | |||
2.5x135 | 35.5" | 900 | 10-265 |

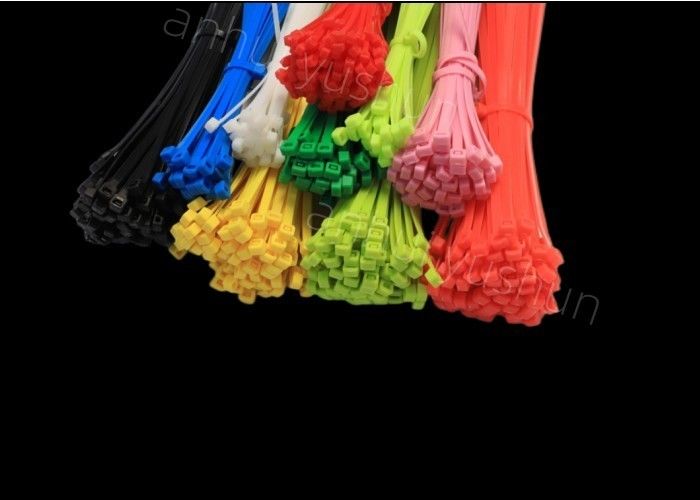

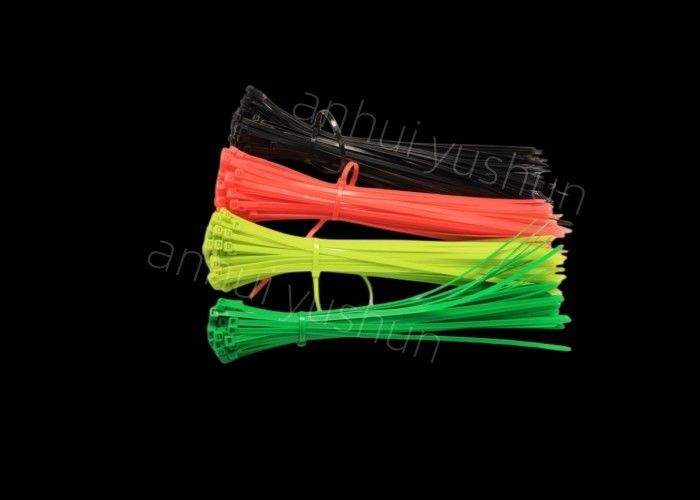

As for the color selection: The most commonly used and popular color is black and white. In addition, we have many colors for you to choose from, such as white, red, yellow, blue, etc. We also support custom colors.
Description:ANHUI Cable Ties Wire Organizer Nylon Cable Tie China Customized 2.5*100mm For Bounding Wires
Name:Nylon cable tie/Cable tie
Materials:Generally,nylon 6/66 are used as raw materials.
Details Images
What are cable ties used for ?
Cable ties, also called zip ties, made of nylon 6/6 material, used for fasten bundles, usually for electric industry, also it is widely use for other
industry.
What are cable ties made from?
Cable ties made from Nylon6/6(also called nylon66, nylon 6,6)Cable tie is made with plastic injection machine.
How strong is a cable tie?
Usually there are 6 level of tensile strength:
1. Miniature Cable Tie 18 lb
2. Intermediate Cable Tie 40 lb
3. Standard Cable Tie 50 lb
4. Light Heavy Duty Cable Tie 120 lb
5. Heavy Duty Cable Tie 175 lb
6. Extra Heavy Duty Cable Tie 250 lb
What is the main characteristic of cable ties?
1. Operation in most of weather,from-40℃ to +85℃
2. Flame-retardant: Meets the UL 94 V-2 rating
3. Water proof
4. Acid proof
5. Cable tie is insulation
6. Light weight and easy use
How to untie cable ties?
1. Cut it
2. If you do not like to cut it, use something small or your finger ( not recommended ) into the lock system and untie it.
Using Occasions
Use of ties.
Use of cable ties, can make the messy lines become orderly, as the use of binding tape, can be convenient to bind two or more objects together, strong and firm!
It is widely used in Christmas gift factory, electronic factory, wire processing factory, wire and cable, toy factory, festival, stationery department store, fresh supermarket, residential daily use, electrical appliances, connectors and other items.
