Place of Origin:
ANHUI CHINA
Brand Name:
YUSHUN
Model Number:
YS
Contact Us
The nylon cable tie for tying things is designed to have the function of stopping back (except for the buckle type), which can only be tied tighter and tighter. There are also detachable tie straps (buckle type).
As for the size selection: The most commonly used size is
2.5*100mm,2.5*150mm,2.5*200mm,3.6*150mm,3.6*200mm,3.6*250mm,3.6*300mm,4.6*300mm,4.6*400mm,4.5*500mm, 7.5*300mm and so on. We also support custom sizes.

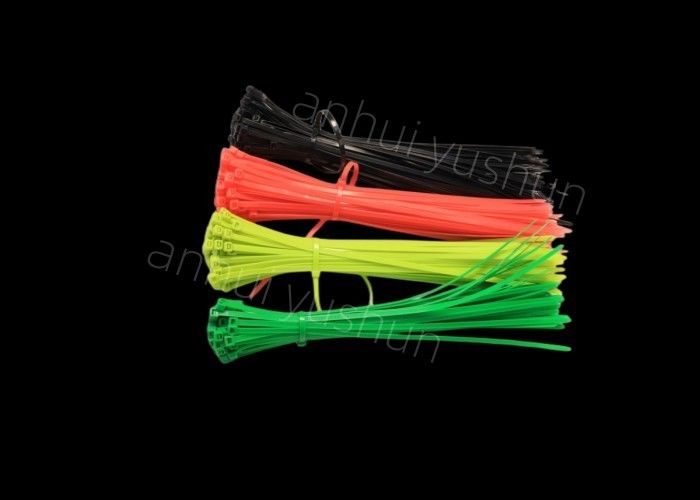

As for the color selection: The most commonly used and popular color is black and white. In addition, we have many colors for you to choose from, such as white, red, yellow, blue, etc. We also support custom colors.
About this item:
1.Cold&Heat Resistant Cable Ties
Made with durable nylon material, weather resistant and outdoor in direct sunlight application is not an issue.
2.Self-locking Design
Cable zip tie with self-locking fastener design, cables can be tied tightly.Wire ties with smooth and no burrs edges ,strong and durable locking,easy to operate,prevent being hooked when tightening.
3.UV Resistant
Zip ties are made from UV Resistant Nylon 66 giving them excellent durability in harsh conditions.
Item | Length(L) | Width(W) | Bundle diameter (E)(mm) |
Tensile strength |
||
Inch | mm | mm | LBS | KGS | ||
2.5x100 | 4.0" | 100 | 2.5 | 2-22 | 18 | 8 |
2.5x101 | 4.7" | 120 | 2-30 | |||
2.5x102 | 6.0" | 150 | 2-35 | |||
2.5x103 | 8.0" | 200 | 3-50 | |||
2.5x104 | 6.0" | 150 | 3.6 | 3-35 | 40 | 18 |
2.5x105 | 8.0" | 200 | 3-50 | |||
2.5x106 | 10.0" | 250 | 3-65 | |||
2.5x107 | 12" | 300 | 3-80 | |||
2.5x108 | 6.3" | 370 | 3-105 | |||
2.5x109 | 8.0" | 150 | 4.8 | 3-40 | 50 | 22 |
2.5x110 | 10" | 200 | 3-50 | |||
2.5x111 | 12" | 250 | 3-65 | |||
2.5x112 | 14" | 300 | 3-80 | |||
2.5x113 | 14.6" | 350 | 3-90 | |||
2.5x114 | 16" | 370 | 3-98 | |||
2.5x115 | 16.9" | 400 | 3-105 | |||
2.5x116 | 17.7" | 430 | 3-120 | |||
2.5x117 | 17.7" | 450 | 3-130 | |||
2.5x118 | 19.7" | 500 | 3-150 | |||
2.5x119 | 8.0" | 200 | 7.2 | 3-50 | 120 | 55 |
2.5x120 | 10" | 250 | 4-65 | |||
2.5x121 | 12" | 300 | 4-80 | |||
2.5x122 | 14" | 350 | 4-90 | |||
2.5x123 | 16" | 400 | 4-105 | |||
2.5x124 | 18" | 450 | 4-110 | |||
2.5x125 | 20" | 500 | 4-150 | |||
2.5x126 | 21.6" | 550 | 4-165 | |||
2.5x127 | 16" | 400 | 8.8 | 8-105 | 175 | 80 |
2.5x128 | 18" | 450 | 8-118 | |||
2.5x129 | 20" | 500 | 8-150 | |||
2.5x130 | 21.6" | 550 | 8-160 | |||
2.5x131 | 23.6" | 600 | 8-170 | |||
2.5x132 | 25.6" | 650 | 8-185 | |||
2.5x133 | 28.3" | 720 | 10-195 | |||
2.5x134 | 31.5" | 800 | 10-230 | |||
2.5x135 | 35.5" | 900 | 10-265 |

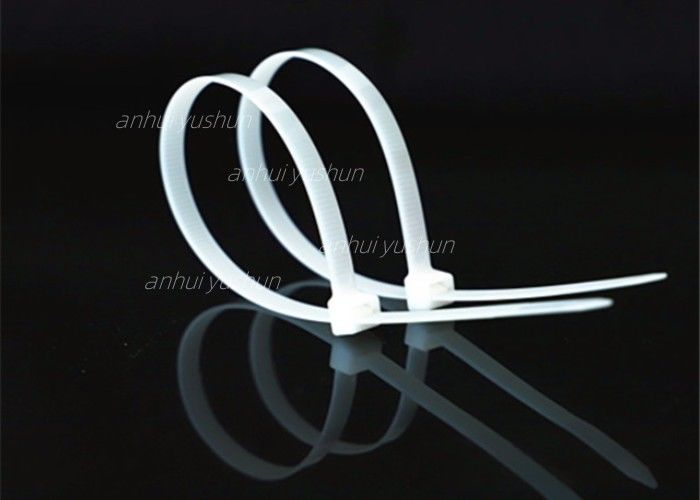

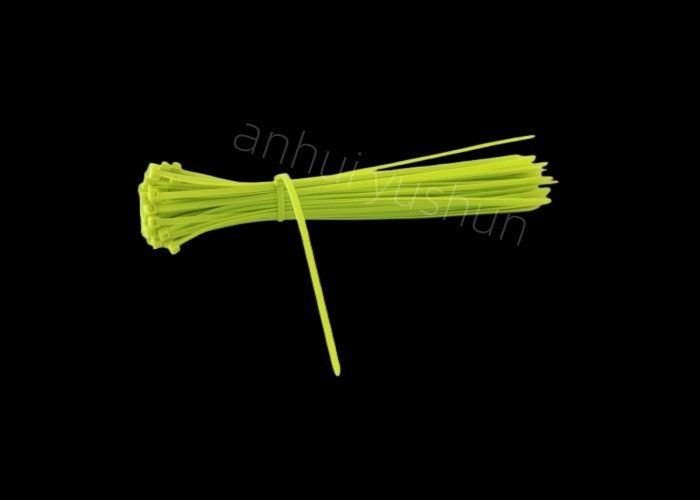

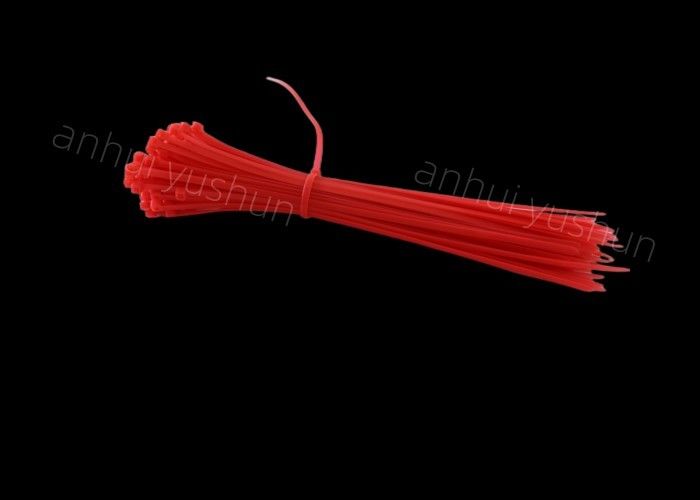

Details Images
What are cable ties used for ?
Cable ties, also called zip ties, made of nylon 6/6 material, used for fasten bundles, usually for electric industry, also it is widely use for other
industry.
What are cable ties made from?
Cable ties made from Nylon6/6(also called nylon66, nylon 6,6)Cable tie is made with plastic injection machine.
How strong is a cable tie?
Usually there are 6 level of tensile strength:
1. Miniature Cable Tie 18 lb
2. Intermediate Cable Tie 40 lb
3. Standard Cable Tie 50 lb
4. Light Heavy Duty Cable Tie 120 lb
5. Heavy Duty Cable Tie 175 lb
6. Extra Heavy Duty Cable Tie 250 lb
What is the main characteristic of cable ties?
1. Operation in most of weather,from-40℃ to +85℃ Cold&Heat Resistant Cable Ties
Made with durable nylon material, weather resistant and outdoor in direct sunlight application is not an issue.
2. Flame-retardant: Meets the UL 94 V-2 rating
3. Water proof
4. Acid proof
5. Cable tie is insulation
6. Light weight and easy use
How to untie cable ties?
1. Cut it
2. If you do not like to cut it, use something small or your finger ( not recommended ) into the lock system and untie it.
Using Occasions
Use of ties.
Use of cable ties, can make the messy lines become orderly, as the use of binding tape, can be convenient to bind two or more objects together, strong and firm!
It is widely used in Christmas gift factory, electronic factory, wire processing factory, wire and cable, toy factory, festival, stationery department store, fresh supermarket, residential daily use, electrical appliances, connectors and other items.
Note
1. Please kindly note that cable ties should be kept out of reach of children.
2. Please kindly cut cable ties with scissors or knifes instead of pulling them with hands.
3. Please kindly note that cable ties should be used in proper temperature and tension.
Q1.Can you provide customized services?
Yes, Yushun is a factory that produces Plastic wall plug, nylon cable tie, nylon cable clip, tile spacer, tile leveling system
Q2.What types of custom parts do you offer?
Yushun provides cPlastic wall plug, nylon cable tie, nylon cable clip, tile spacer, tile leveling system.
Yushun is not only able to provide customized parts for a single process, but also a variety of combined processes.
Q3.Does each customized product require a mold fee?
Not all custom parts are subject to a mold fee. For example, conventional products do not require molds, and Yushun spends labor costs when making samples, so it charges a certain sample fee.
Q4.Where is your factory and can I visit it?
Yushun has its own factory. You can mainly be located in Anhui Province
Visit the appropriate factory according to the product you want to purchase. Please feel free to visit our factory and provide Guide. We can pick you up at the nearest airport or train station.
Q5.Can you provide free samples?
Yes,we can provide free samples if available. Please understand that we charge a fee for custom samples before making them
.
